Seat:==》Product>>>Industrial On-line Controller
|
|
Name: KL-018 Industrial on-line PH Controller |
Product description :
| Measuring range |
0.00~14.00PH |
| Accuracy |
±0.02PH |
| Resolution |
0.01PH |
| Output current |
4-20mA |
| Automatic temperature compensation |
0~100℃ |
| Warning accuracy |
±0.02PH |
| Environment |
Temperature:0~50℃ Humidity<95℅ |
| Display |
4-digital LED |
| Input Impedance |
1012Ω |
| Power Supply |
220V±10℅ 50Hz±2℅ |
| Dimensions |
96mm×96mm×160mm |
| Weight |
950g |
|
|
Technology Parameters >>
|
|
|
|
Name: KL-019 Industrial On-line ORP Controller |
Product description :
| Measuring range |
0~±1999mV |
| Accuracy |
±(0.1℅+2 digits)after calibration |
| Resolution |
1mV |
| Output current |
4-20Ma(max charge:50Ω) |
| Relay contact |
two 220V5A |
| Environment |
Temperature:0~50℃ Humidity<95℅ |
| Display |
4-digital LED |
| Input Impedance |
1012Ω |
| Power Supply |
110Vor220V±10℅50/60Hz±5℅ |
| Dimensions |
96mm×96mm×160mm |
| Weight |
950g |
|
|
Technology Parameters >>
|
|
|
|

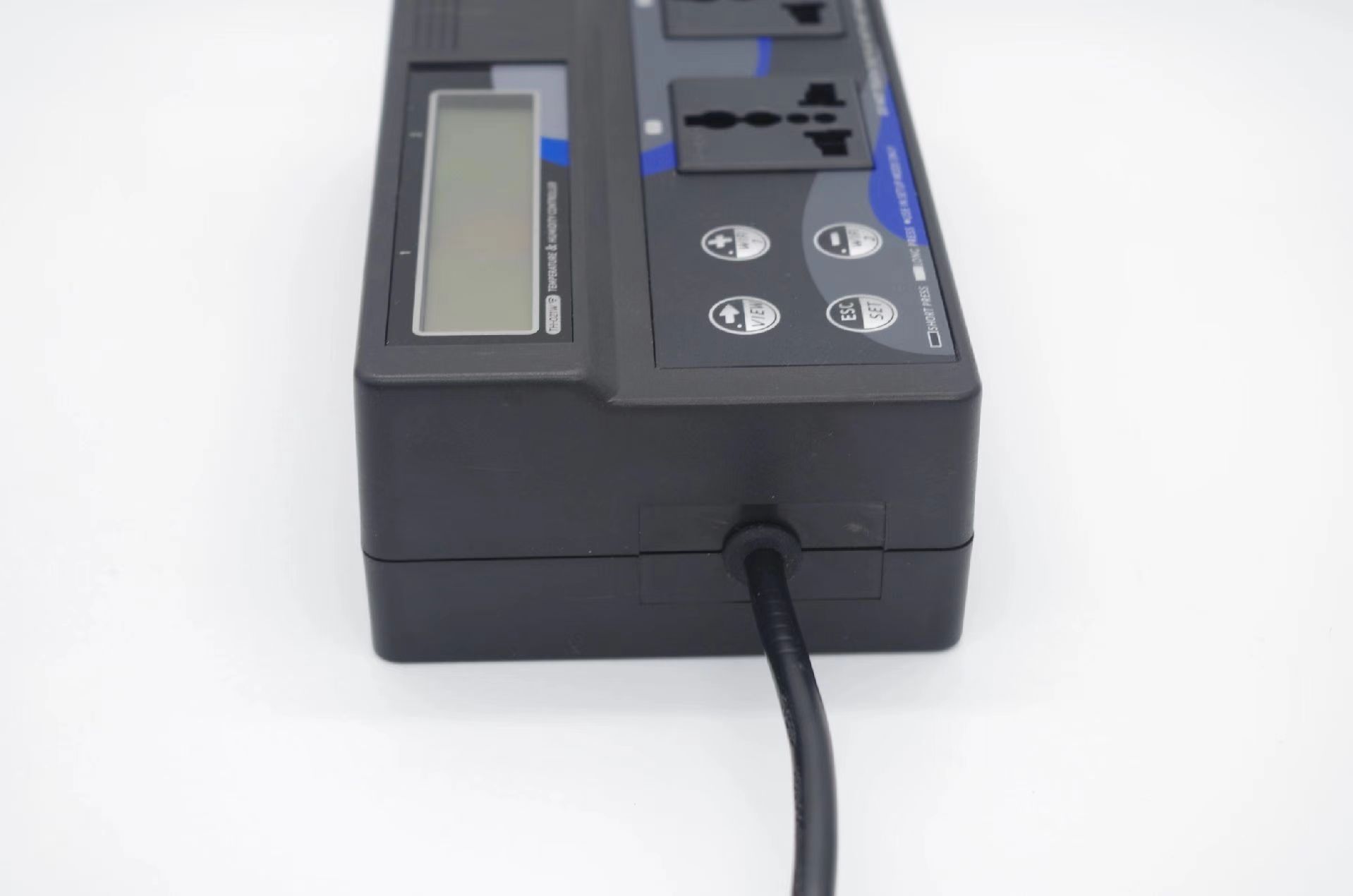

Name: PH-221 Digital pH and Temperature Controller |
Product description :
|
Measuring range
|
pH
|
0.00 ~ 14.00 pH
|
|
Temp
|
0～50℃ (32℉-122℉)
|
|
Resolution
|
pH
|
0.01 pH
|
|
Temp
|
0.1℃ (0.2℉)
|
|
Accuracy
|
pH
|
±0.02pH
|
|
Temp
|
±0.5℃
|
|
Display
|
pH
|
4-digital LCD
|
|
Temp
|
3-digital LCD
|
|
Automatic Temperature Compensation
|
0 ~ 50°C
|
|
Calibration
|
2 points with auto buffer recognition
|
|
Set Range
|
0 ~ 14PH (High or Low)
|
|
Relay contact
|
5A/240VAC
|
|
Environment
|
Temperature:0~50℃ Humidity<95℅
|
|
Power Supply
|
220V±10℅ 50Hz±2℅
|
|
Dimensions
|
95 x 61 x 20 mm
|
|
Weight
|
550g
|
|
|
Technology Parameters >>
|
|
|
|

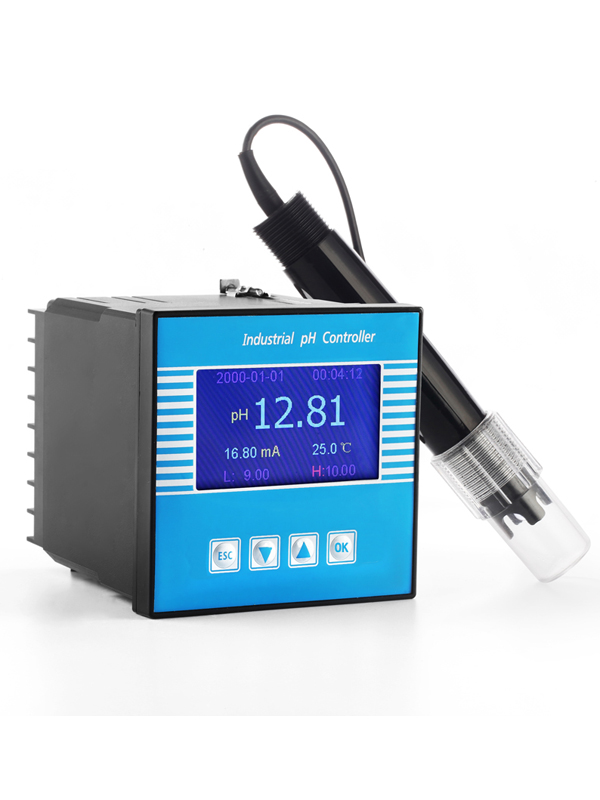

Name: PH-018(485) RS485 Industrial on-line PH Controller |
Product description :
|
Range
|
pH
|
0.00 ~ 14.00 pH
|
|
|
Temperature
|
0～100℃
|
|
Resolution
|
pH
|
0.01 pH
|
|
|
Temperature
|
0.1℃
|
|
Accuracy
|
pH
|
±0.02pH
|
|
|
Temperature
|
±0.5℃
|
|
Automatic Temperature Compensation
|
0 ~ 100°C, 25℃
|
|
Repeatability error of electronic unit
|
±0.02pH
|
|
Stability
|
±0.02pH/24h
|
|
Input Impedance
|
≥1012Ω
|
|
Output current
|
4~20mA
|
|
Output current Accuracy
|
≤±1%FS
|
|
High-low alarm relay
|
AC220V、10A
|
|
RS485
|
MODBUS RTU
|
|
Power Supply
|
AC220V±22V,50±1Hz
|
|
levels of protection
|
IP54
|
|
Environment
|
0℃~60℃; RH≤95℅
|
|
Dimensions
|
96mm x 96mm x 110mm
|
|
Hole Size
|
92mm x 92mm
|
|
Weight
|
1050g
|
|
|
Technology Parameters >>
|
|
|
|
