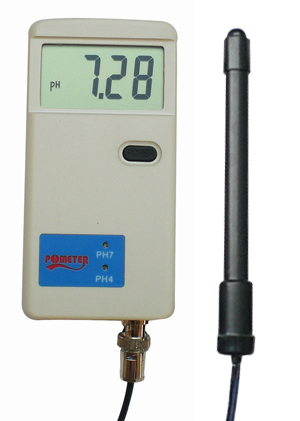

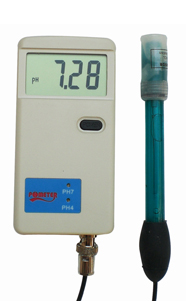

| KL-012 Portable pH Meter |
| Technical Specification: |
| Model |
KL-012 |
| Range |
0.00~14.00pH |
| Accuracy |
±0.05PH |
| Resolution |
0.01PH |
| Operating temperature |
0℃~50℃ |
| Automatic Temperature Compensation |
0℃~50℃ |
| Power Supply |
DC 9V |
| Dimensions |
150mm×70mm×25mm |
| Weight |
227g |
|
 |
|

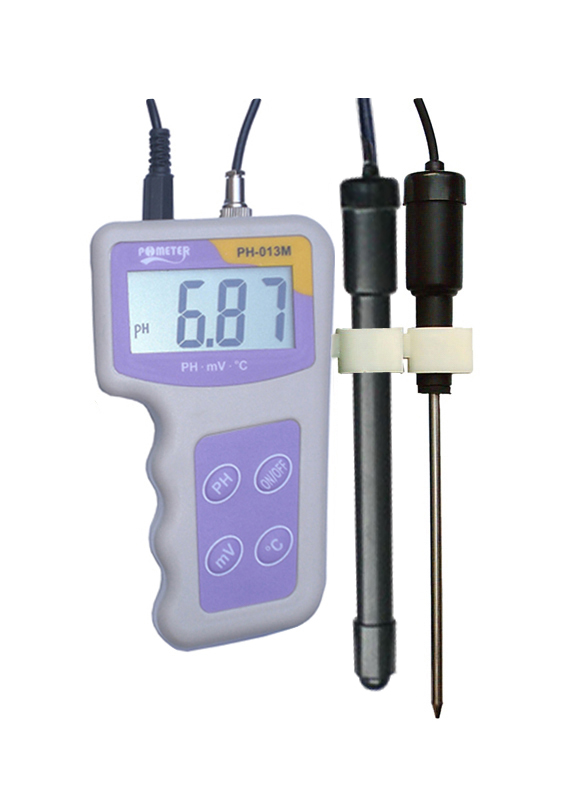

| KL-013M Portable pH/mV/℃ Meter |
| Technical Specification: |
| Model |
KL-013M |
| Measuring range |
PH |
0.00~14.00PH |
| mV |
0~±1999mV |
| Temp |
0~100℃ |
| Accuracy |
PH |
±0.01pH |
| mV |
±0.1℅F·S±1digit |
| Temp |
±0.4℃ |
| Resolution |
PH |
0.01pH |
| mV |
1mV |
| Temp |
0.1℃ |
| Environment |
Temperature:0℃~50℃ Humidity:≤95℅ |
| Display |
4-digital LCD |
| Power Supply |
1×9V Battery |
| Input Impedance |
1012Ω |
| Dimensions |
123mm×72mm×33mm |
| Weight |
238g |
|
 |
 |
|
|
Characteristics:
* Low cost
* Easy to carry
* easy operation
* Reliable and stable |

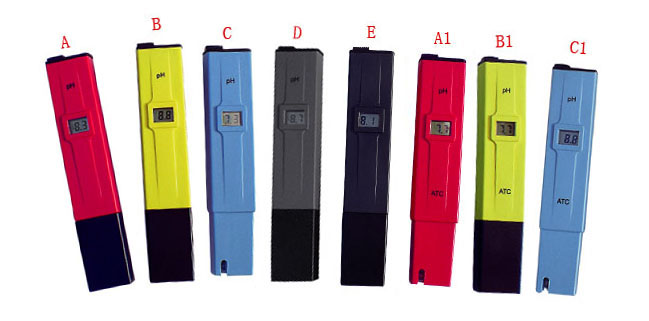

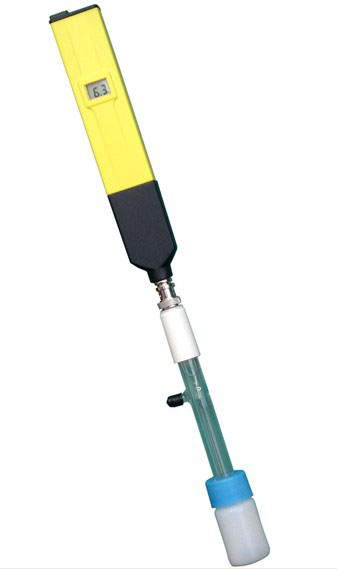

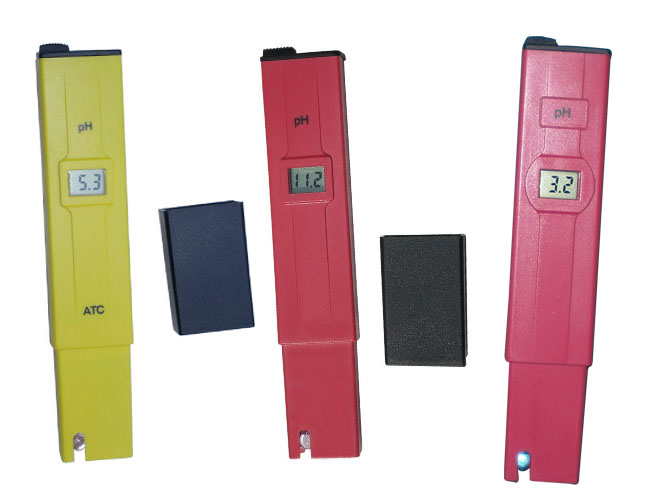

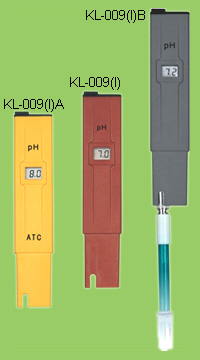

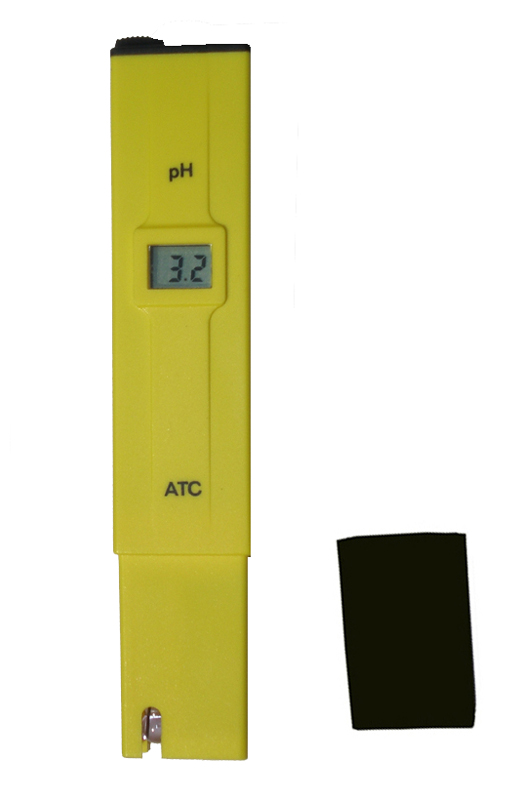

| KL-009(I) Pocket-size PH meter |
| |
| With
special compound pH electrode as probe and
three digits liquid crystal display, is easy for operating.
It is praised in home and aboard for its cheap
price and portability. It is also called pocket
pH meter or precision pH reagent paper. This
product has been exported in batches. |
Technical Specification:
| Model |
KL-009(I) |
KL-009(I)A |
KL-009(I)B |
| Measuring range |
0.0~14.0pH |
| Accuracy |
±0.2PH
±0.1PH(at 20℃) |
±0.1PH |
±0.2PH
±0.1PH(at 20℃) |
| Resolution |
0.1PH |
| Operating Temperature |
0℃～50℃ |
| Temperature Compensation |
0～50℃ |
| Plug |
Fixed Electrode |
BNC |
| Power Supply |
3×1.5V(AG13) |
4×1.5V(AG13) |
4×1.5V(AG13) |
| Dimensions |
150×29×20(mm3) |
| Weight |
51g |
70g |
|
|
| This
pH meter can replace precision pH reagent
paper to determine pH value of various solutions
conveniently at any time. It is applicable
to determine pH value of water solution in
various professions |
|
|
| |
| KL-009(II) High Accuracy Pen-type pH Meter |
| Model
KL-009（II）pen-type pH meter uses combined
pH electrode of high sensitivity, fast response,
and good repetition as probe. With 31/2 liquid
crystal digits display, the meter is reliable,
stable, portable, and convenient to operate,
especially for field measuring. It is praised
by home and aboard. This product has been
exported in batches. |
Technical
Specification:
| Model |
KL-009(II) |
KL-009(II)A |
| Measuring range |
0.00~14.00PH |
| Accuracy |
±0.1PH |
| Resolution |
0.01PH |
Operating
Temperature |
0℃~50℃ |
| Automatic Temperature Compensation |
0℃~50℃ |
| Plug |
Fixed Electrode |
BNC |
| Power Supply |
4×1.5V(AG13) |
| Dimensions |
170×36×23(mm3) |
| Weight |
85g |
105g |
Characteristics:
* Compact construction
* Easy operation
* On-the-spot measurement
* Instead of precision pH reagent paper
* Easy to carry
|
| It
is applicable to determine pH value
of water solution in departments of
medical treatment, environment protection,
scientific research, college and mechanical
plant etc. |
|
|
|
|
| |

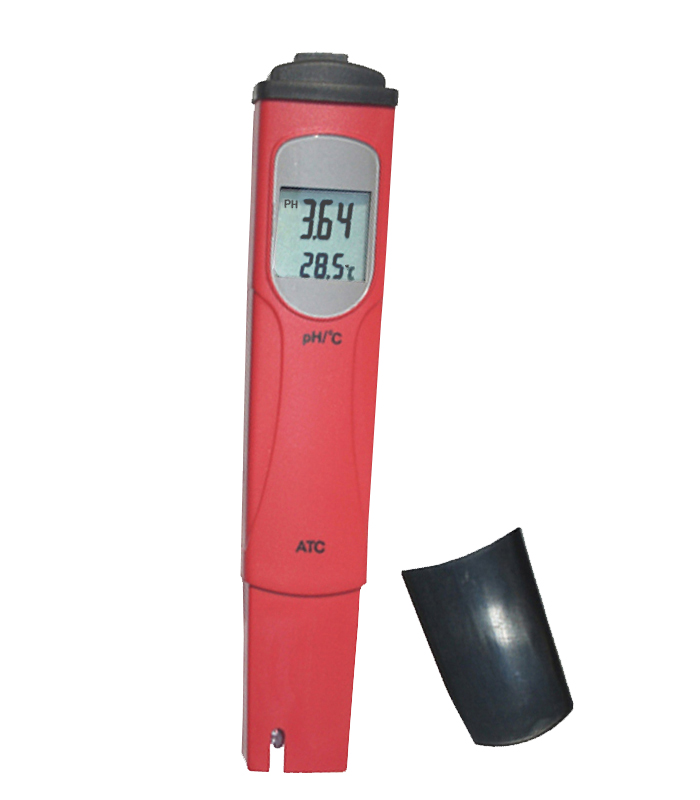

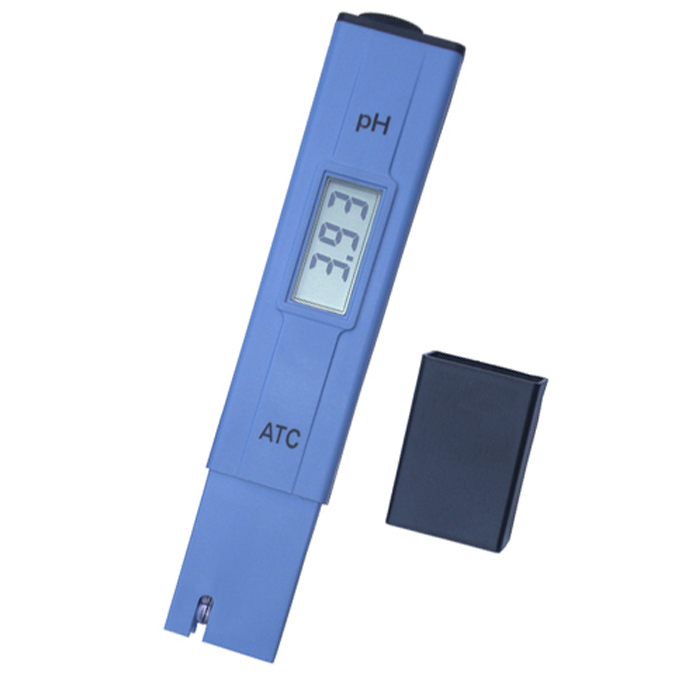

| KL-009〔Ⅲ〕High Accuracy Pen-type pH Meter |
| KL-009(III) high accuracy pen type PH meters uses combined pH electrode of high sensitivity , fast response, and good
repetition as probe. With 31/2 liquid crystal
digits display, the meter is reliable, stable,
portable, and convenient to operate, especially
for field measuring. It is praised by home
and aboard. This product has been exported
in batches. Temperature compensation and temperature
display. |
 |
Model |
KL-009(III) |
KL-009(III)A |
Measuring range |
0.00~14.00PH 0℃~55℃ |
0.00~14.00PH |
Accuracy |
±0.1PH ±1℃ |
±0.1PH |
Resolution |
0.01PH 0.1℃ |
0.01PH |
Operating Temperature |
0℃~50℃ |
Automatic Temperature Compensation |
0℃~50℃ |
Power Supply |
4×1.5V(AG13) |
Dimensions |
170×36×23(mm3) |
Weight |
91g |
|
* Easy-to-read Custom Dual-level LCD
* On-the-spot measurement
* Automatic Temperature Compensation
* Stability Indicator
|
|
| It is applicable to determine pH value of water solution in departments of medical treatment, environment protection, scientific research, college and mechanical plant etc. |

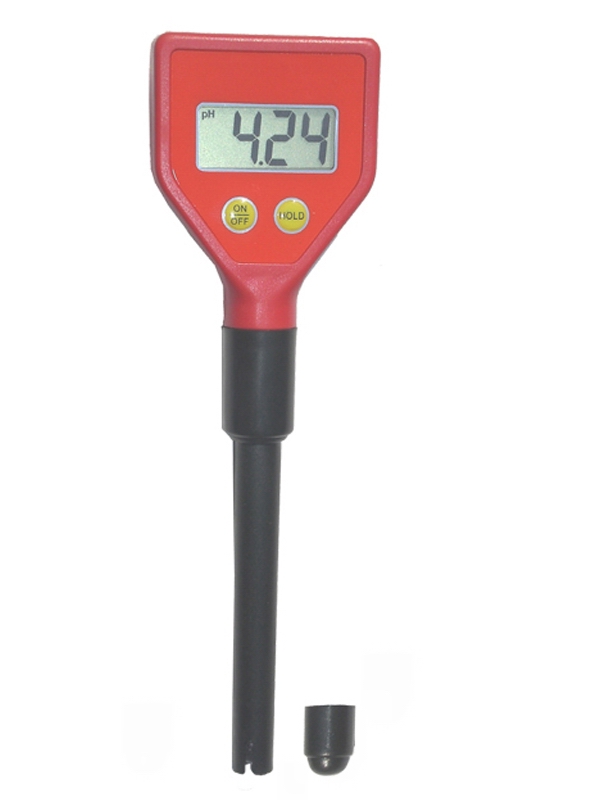

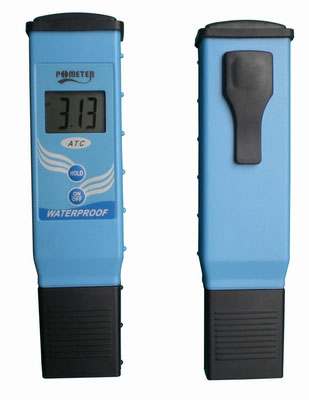

| KL-096 Waterproof Handy pH Meter |
*Large and easy-to-read LCD
*Waterproof design
*Data hold
Technical Specification: |
 |
Measuring range |
0.00~14.00PH |
Accuracy |
±0.1PH |
Resolution |
0.01PH |
Operating Temperature |
0℃~50℃ |
Automatic Temperature Compensation |
0℃~50℃ |
Power Supply |
4×1.5V(AG13) |
Dimensions |
180mm×45mm×30mm |
Weight |
140g |
|
|
|
|
|
| |

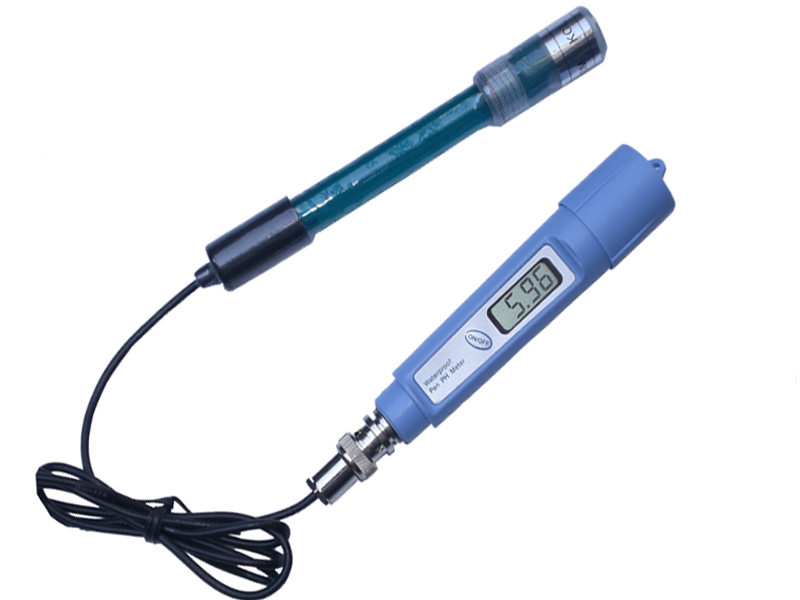

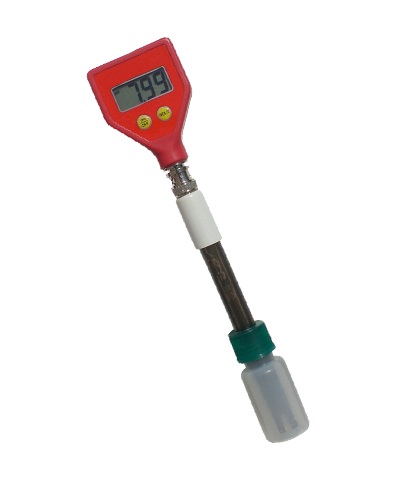

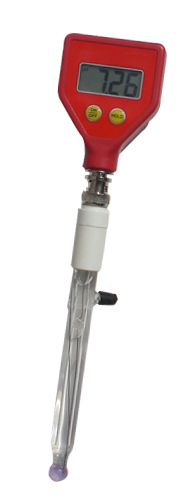

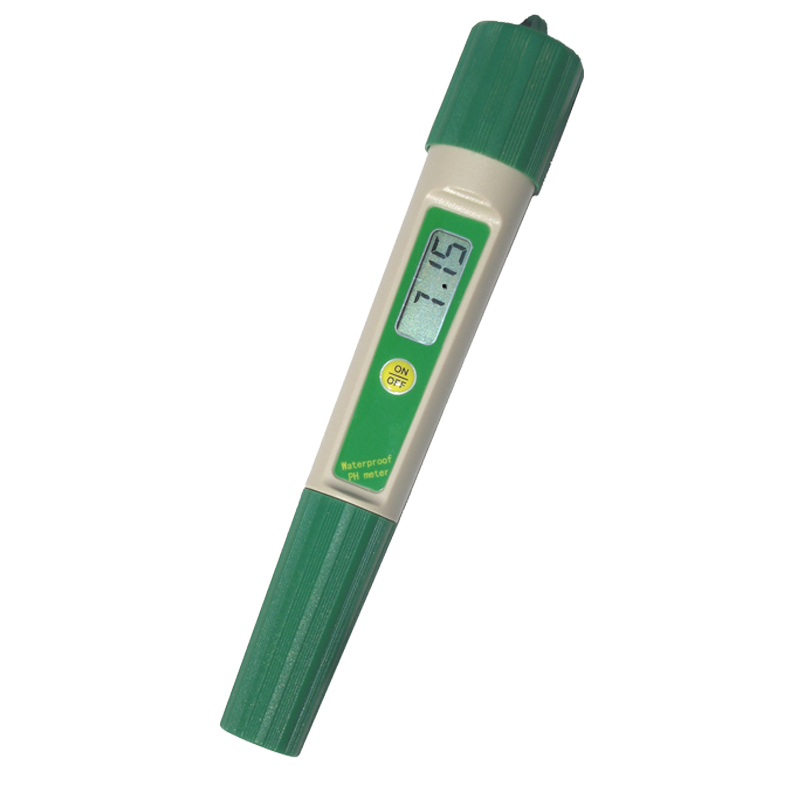

| KL-03(II) Waterproof Pen-type pH Meter |
| |
| Pocket sized and feather-weight for portable use in a large number of applications. It is utilize user-replaceable electrodes. |
| |
KL-03(II) |
KL-03(II)L |
KL-03(II)A |
KL-03(II)B |
|
| |
| Technical Specification： |
Model |
KL-03(II) |
KL-03(II)L |
KL-03(II)A |
KL-03(II)B |
Range |
0.00~14.00pH |
Accuracy |
±0.1PH |
Resolution |
0.01PH |
Operating temperature |
0℃~50℃ |
Automatic Temperature Compensation |
0℃~50℃ |
Plug |
Fixed Electrode |
Extended Fixed Electrode |
BNC+1m cable |
BNC |
Power Supply |
4×1.5V(AG13) |
Dimensions |
165×26×26 mm |
120mm×26mm×26mm |
Weight |
63g |
65g |
70g |
68g |
|
| |

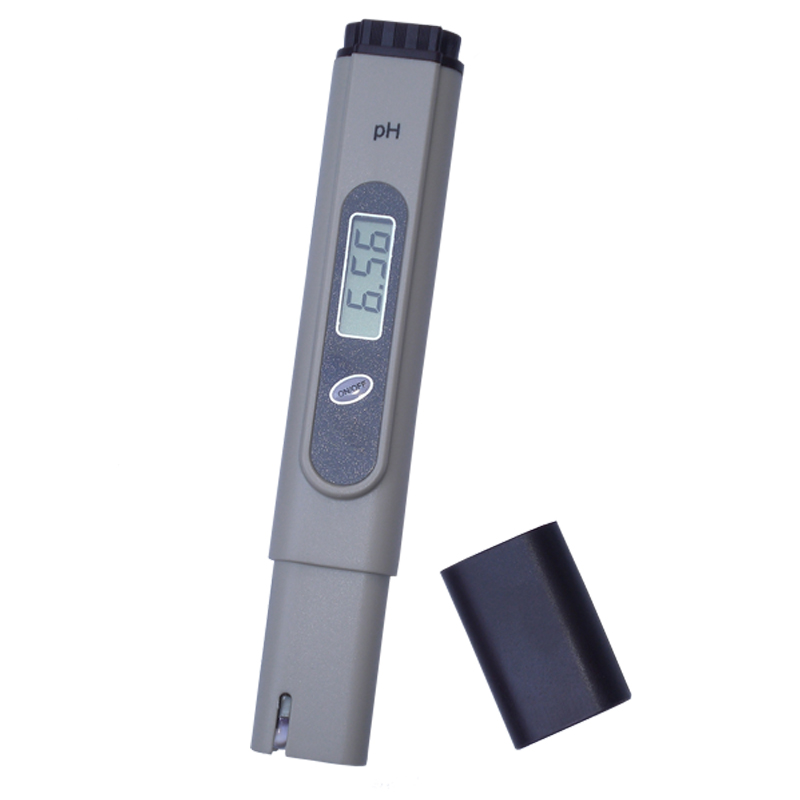

KL-03(I) High Accuracy Pen-type pH Meter
Technical Specification:
Range：0.00-14.00PH
Resolution：0.01PH
Accuracy：±0.1PH
Temperature Compensation： 0℃～50℃
Power Supply：2×3V（CR2032 Battery）
Operating Temperature：0℃～50℃
Adjustment： 1 points
Dimension:150mm×27mm×20mm
Weight：46g |
| |
| |

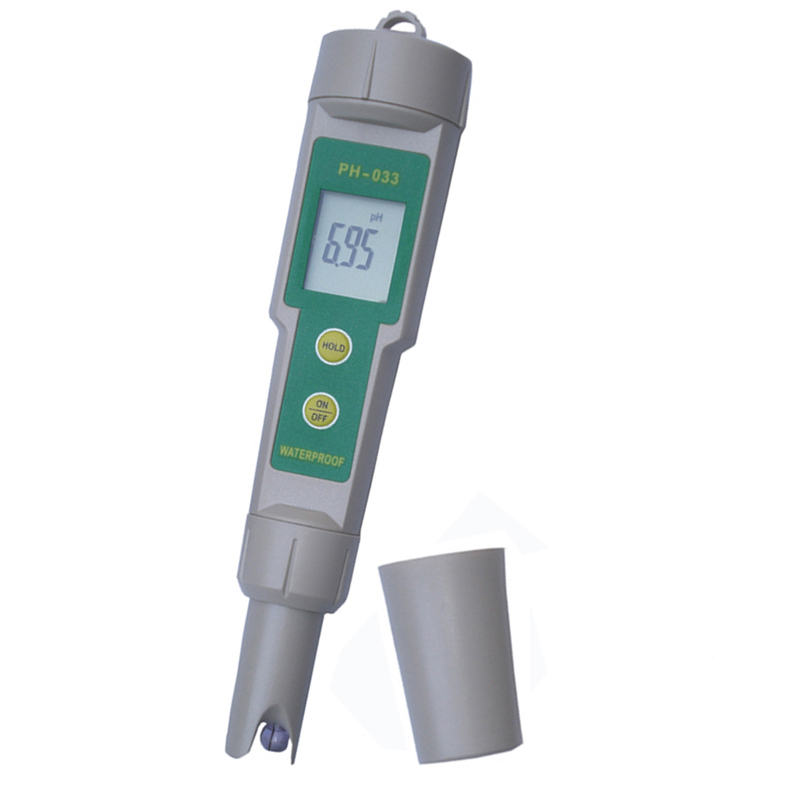

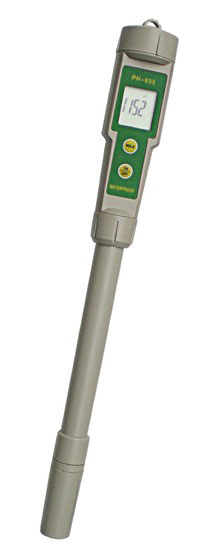

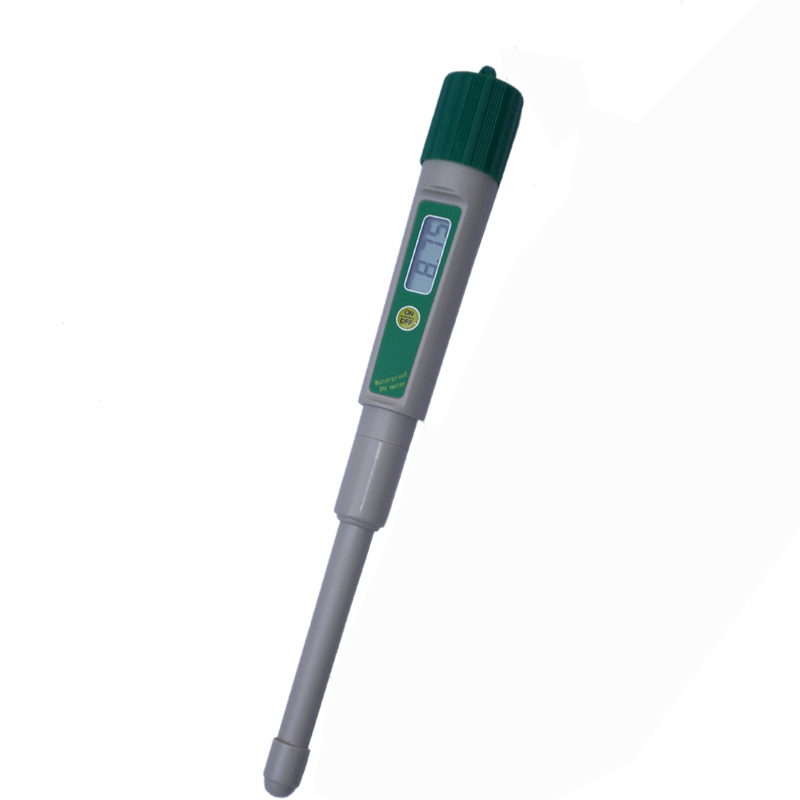

 KL-03(III)Waterproof Pen-type pH Meter
*Large and easy-to-read LCD
*Replaceable pH electrode
*Waterproof design
*Data hold
| Technical Specification |
| Model |
KL-03(III) |
| Measuring range |
0.00~14.00PH |
| Accuracy |
±0.1PH |
| Resolution |
0.01PH |
| Operating Temperature |
0℃~50℃ |
| Automatic Temperature Compensation |
0℃~50℃ |
| Power Supply |
4×1.5V(AG13) |
| Dimensions |
188×35×35(mm3) |
|
| |
| |

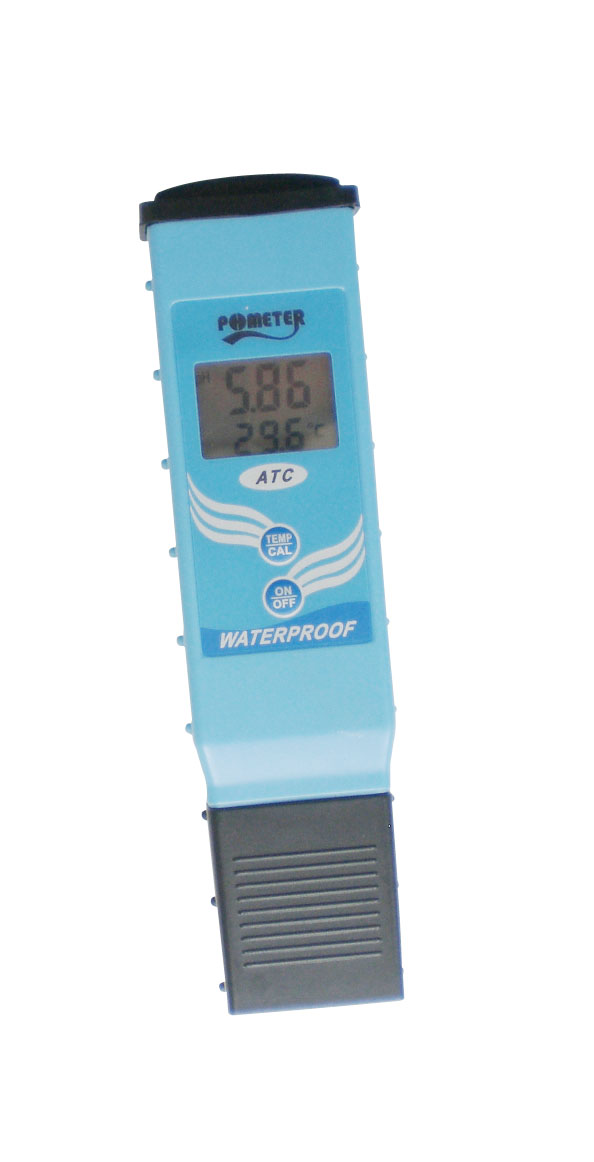

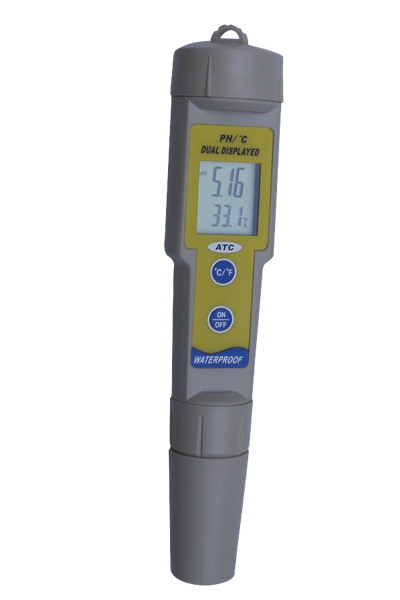

 KL-035 Waterproof Pen-type pH Meter
*With Temperature Display
*Replaceable pH electrode
*Waterproof design
*Data hold
Technical Specification: |
Range |
PH |
0.00～14.00PH |
Temp |
0～50℃ |
Accuracy |
PH |
±0.1 PH |
Temp |
±1℃ |
Resolution |
PH |
0.01PH |
Temp |
0.1℃ |
Operating temperature |
0℃～50℃ |
Automatic Temperature Compensation |
0℃～50℃ |
Power Supply |
4×1.5V(AG13) |
Calibration |
Manual, at one point through trimmer |
Dimensions |
188mm×35mm×35mm |
Weight |
98g |
|
| |
|
|

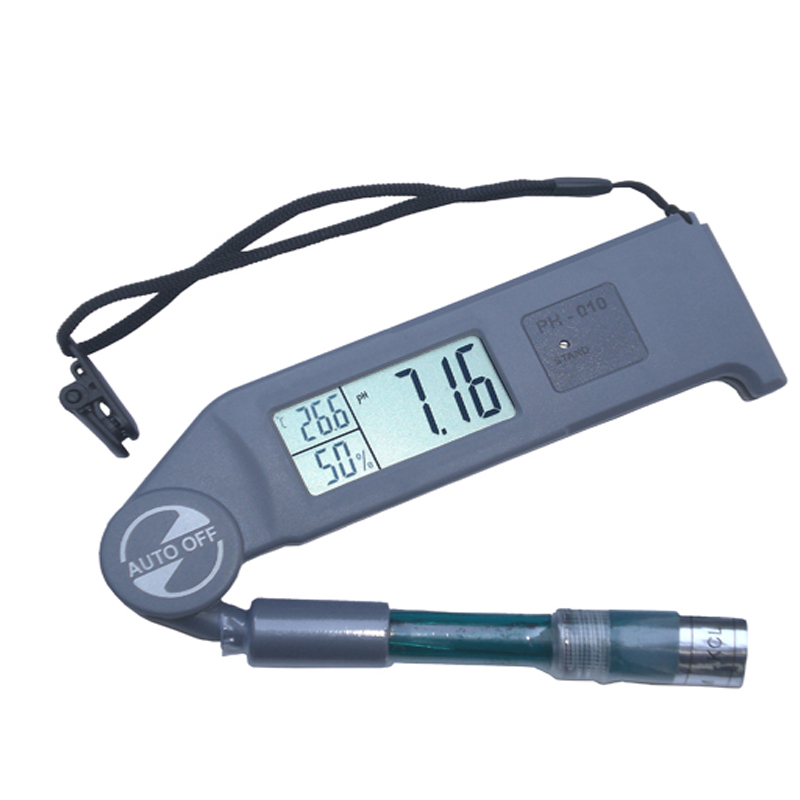

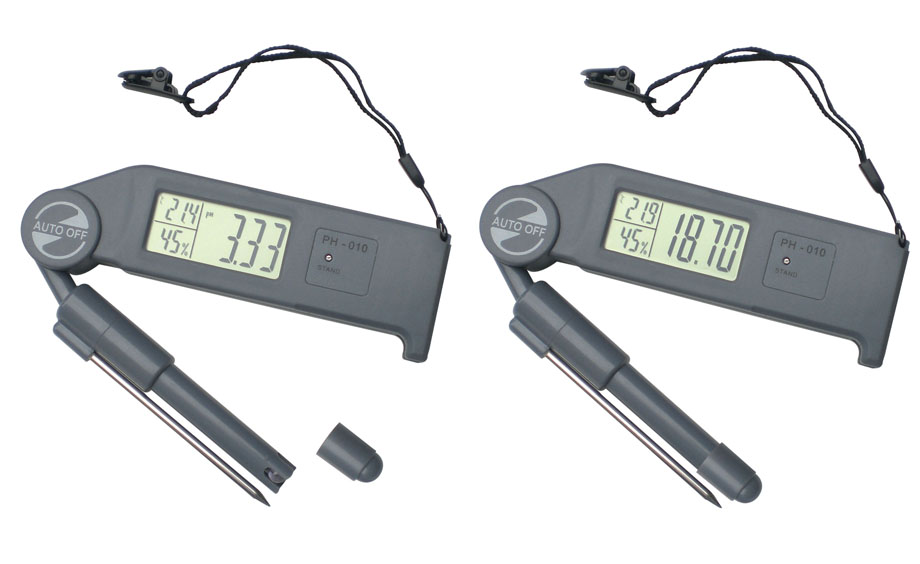

KL-010 Folding Three In One pH Tester
Technical Specification：
|
Measuring range |
PH |
0.00～14.00PH |
| ℃ |
－5～50℃ |
| RH |
10%～99%RH |
| Resolution |
PH |
0.01PH |
| ℃ |
0.1℃ |
| RH |
1%RH |
| Accuracy |
PH |
±0.1PH |
| ℃ |
±1℃ |
| RH |
±5%RH |
Automatic Temperature Compensation: 0℃~50℃
Power Supply：4×1.5V(AG-13 Button Battery)
Operating Temperature: 0℃~50℃
Dimension：156mm×55mm×23mm
Weight：95g |
KL-025 Mini PH Meter
Technical Specification：
Model |
KL-025 |
Range |
0.00~14.00PH |
Accuracy |
±0.1PH |
Resolution |
0.01PH |
Operating temperature |
0℃~50℃ |
Power Supply |
4×1.5V(AG13)or AC110V~240V |
Dimensions |
60mm×55mm×23mm |
Weight |
62g |
|
|
KL-025M Portable PH Meter
Technical Specification
Model |
KL-025M
|
Range |
0.00~14.00PH |
Resolution |
0.01PH |
Accuracy |
±0.1PH(│T1-T2│≤5℃)
±0.2PH(│T1-T2│＞5℃)
(T1--The environment temperature, T2--The test liquid temperature) |
Operating temperature |
0℃~50℃ |
Power Supply |
AC110~240V,with rechargeable battery |
Dimensions |
112 mm×86 mm×57mm |
Weight |
345g |
|
 |
KL-98103 Economical pH Tester
Technical Specification：
Model |
KL-98103 |
Range |
0.00~14.00PH |
Accuracy |
±0.2PH
±0.1PH(at20℃) |
Resolution |
0.01PH |
Operating temperature |
0℃~50℃ |
Power Supply |
3×1.5V(AG13) |
Dimensions |
175mm×51mm×25mm |
Weight |
57g |
|
|
| |
| |

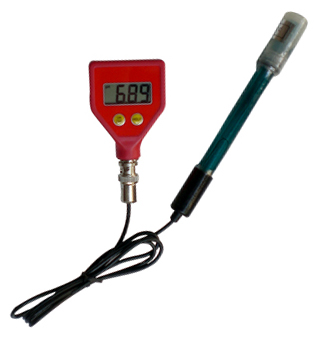

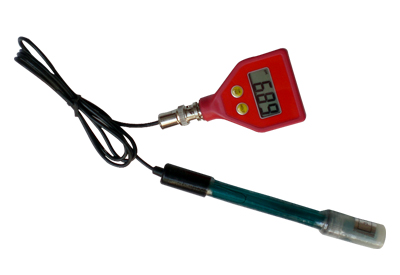

KL-98105 pH Tester |
Technical Specification： |
Model |
KL-98105 |
KL-98106 |
KL-98107 |
Range |
0.00~14.00pH |
Accuracy |
±0.2PH
±0.1PH(at20℃) |
Resolution |
0.01PH |
Operating temperature |
0℃~50℃ |
Automatic Temperature Compensation |
0℃~50℃ |
Electrode |
BNC+1m cable |
BNC |
BNC |
Power Supply |
3×1.5V(AG13) |
Dimensions |
175mm×51mm×25mm |
Weight |
57g |
 |
 |
 |
| KL-98105 |
KL-98106 |
KL-98107 |
|
|
| |
|

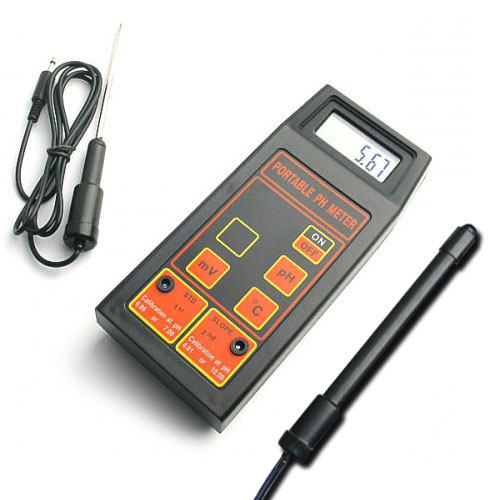

| KL-013 High Accuracy Portable pH Meter |
| Model |
KL-013 |
| Measuring range |
PH |
0.00~14.00PH |
| mV |
0~±1999mV |
| Temp |
0~100℃ |
| Accuracy |
PH |
±0.01pH |
| mV |
±0.1℅F·S±1digit |
| Temp |
±0.4℃ |
| Resolution |
PH |
0.01pH |
| mV |
1mV |
| Temp |
0.1℃ |
| Environment Temperature: |
0℃~50℃ Humidity:≤95℅ |
| Display |
4-digital LCD |
| Power Supply |
9V Battery |
| Input Impedance |
1012Ω |
| Dimensions |
180×83×46(mm3) |
| Weight |
290g |
|
 |
* No need
to adjust normally * Easy operation * Reliable
and stable * Easy to carry * Temp. Compensation:
Automatic
|
KL-013
high accuracy Portable PH meters acidity meter
is applicable to measure pH value in water
solution and electrode potential (mV) for
medicine, teaching, biochemical analysis,
environmental protection, mine etc. the pH
meter can be used to judge the final point
in electro-metric titration.
This apparatus can be used with various ion
selective electrodes, reference electrodes,
magnetic stirrer manufactured by our factory.
|
|
|
|

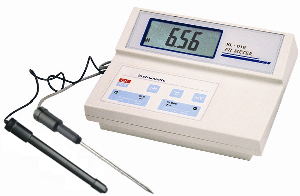

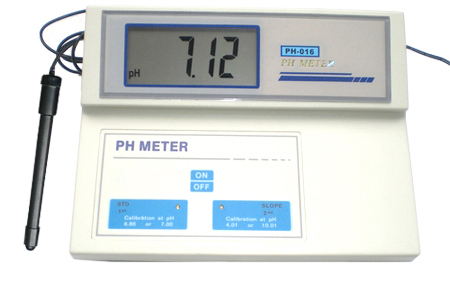

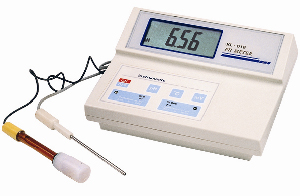

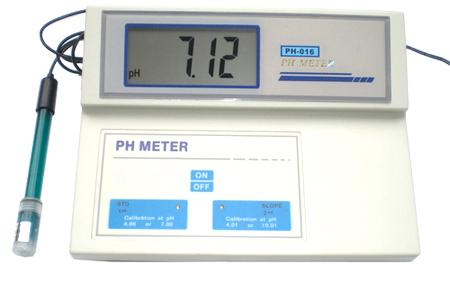

| Kl-016 Bench-top pH Meter |
| KL-016
intellectual acidometer is an accurate electrochemical
apparatus which is used to measure the acidity
and basicity, electrode potential and the
temperature of solutions.It is an accurate
secondary instrument with LED digital display.
It can be used with various ion selective
electrodes to measure cell potential of electrodes
in solution. The negative logarithm of the
ionic activity in solution can be read directly.
The instrument can also be used as an accurate
pH meter and an accurate mV meter with high
input impedanceAccording to Nernst equation
combined with micro computer technology, the
apparatus carries out real timely monitoring
and data treatment. Then the acidity result
can be measured. |
 |
| Model |
KL-016 |
| Measuring range |
PH |
0.00~14.00PH |
| mV |
0~±1999mV |
| Temp |
0~100℃ |
| Accuracy |
PH |
±0.01pH |
| mV |
±0.1℅F·S±1digit |
| Temp |
±0.4℃ |
| Resolution |
PH |
0.01pH |
| mV |
1mV |
| Temp |
0.1℃ |
| Environment |
Temperature:0℃~50℃ Humidity:≤95℅ |
| Display |
4-digital LCD |
| Power Supply |
AC110VorAC220V50/60Hz |
| Input Impedance |
1012Ω |
| Dimensions |
240×185×100(mm3) |
| Weight |
660g |
|
The handy key board for the selection of the various functions. The possibility of automatically correcting errors in measurement due to temperature and the extreme simplicity of regulation all serve to permit a rapid and reliable execution of calibration and measurement.
The display on the front panel reveals the temperature. PH or mV reading taken by the instrument. The instrument comes supplied with a combined PH electrode and a probe for the measurement and compensation of the temperature.
|
|
|
|

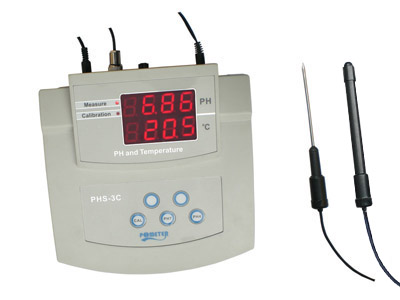

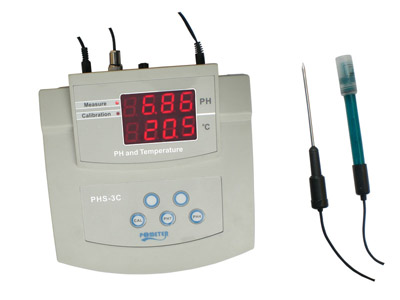

| PHS-3C Bench pH/Temp meter |
| |
Technical
Specification:
Range |
PH |
0.00～14.00PH |
| ℃ |
0～100℃ |
| Resolution |
PH |
0.01PH |
| ℃ |
0.1℃ |
| Accuracy |
PH |
±0.02PH |
| ℃ |
±0.5℃ |
| Display |
PH |
4-digital LED |
| ℃ |
3-digital LED |
| Automatic Temperature Compensation |
0℃～50℃ |
| Power Supply |
AC220V 50Hz |
| Operating Temperature |
0℃～50℃ |
| Adjustment |
2 points with auto buffer recognition |
|
 |
|
KL-016A Bench-top pH Meter |
| |
Technical
Specification:
Technical SpecificationModel |
KL-016A |
| Measuring Range |
0.00~14.00PH |
| Accuracy |
±0.05 PH |
| Power Supply |
AC 220V DC6V |
| Environment |
Temperature:0~50℃ Humidity<95℅ |
| Dimensions |
240mm×158mm×100mm |
| Weight |
736g |
|
 |
|
|
| KL-100
Digital pH Controller |
| |
Technical
Specification:
| Model |
KL-100 |
| Measuring range |
0.00~14.00PH |
| Accuracy |
±0.02PH |
| Resolution |
0.01PH |
| Set Range |
3.50～10.50PH |
| Relay contact |
5A/240VAC |
| Environment |
Temperature:0~50℃ Humidity<95℅ |
| Display |
4-digital LED |
| Input Impedance |
1012Ω |
| Power Supply |
220V±10℅ 50Hz±2℅ |
| Dimensions |
108×210×48 (mm3) |
| Weight |
550g |
|
 |
|
| KL-018 Industrial Online pH Controller |
| It
is an accurate secondary instrument with LED
digital display. it is applicable to determine
pH value of water solution in departments
of petroleum,chemical,medicine-produce ect.
Automatic temp.Compensation |
|
 |
| Model |
KL-018 |
| Measuring range |
0.00~14.00PH |
| Accuracy |
±0.02PH |
| Resolution |
0.01PH |
| Output current |
4-20mA |
| Automatic temperature compensation |
0~100℃ |
| Warning accuracy |
±0.02PH |
| Environment |
Temperature:0~50℃ Humidity<95℅ |
| Display |
4-digital LED |
| Input Impedance |
1012Ω |
| Power Supply |
220V±10℅ 50Hz±2℅ |
| Dimensions |
96×96×160(mm3) |
| Weight |
950g |
|
| |
|
| |
.jpg)
z1.jpg)
Lz1.jpg)
Az1.jpg)
