| Tachometer |
  The
handy key board for the selection of the various functions.the
extreme simplicity of regulation all sereve to permit
a rapid and reliable execution of calibration and measurement.
High
sensitivity,fast response,compact constructionEasy for
operating.it is prised in home and aboard for its cheap
price and portablitity.
Application：It
is applicable to the product departments of motor,fan,paper-product,plastics,chemical
fiber,washing-machine, automobile ,airplane,steame etc. |
| |
|

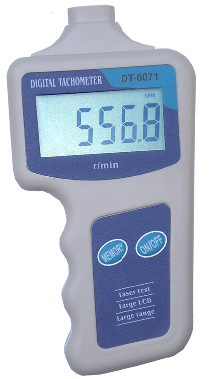

KL-0071 Laser Type Tachometer |
KL-0071
|
*Max/Min Value
*Memory function
*Large and easy-to-read LCD
Technical Specification:
Model |
KL-0071 |
Measuring range |
30～99999r/min |
Accuracy |
±(0.02%n+1dight) |
Measuring distance |
5～150cm |
Store time |
Until take out the battery |
Memory |
Max/Min/Last Value |
OperatingTemperature |
0～70℃ |
Adoption time |
1(automation) |
Power supply |
3×1.5V AAA BATTERY |
Dimensions |
72mm x 136mm x 33mm |
Weight |
146g |
|
|
| |
|

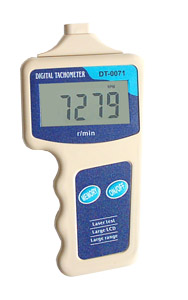

KL-007
Many functions tachometer |
Kl-007 |
Technical
Specification: |
| Measuring
range: 6～99999r/min±2r/min |
| Frequncy:
0.5～999.99Hz ±0.02Hz |
| Enumerate:
1～99999 part-time: 1S～10h±0.01% |
| Accuracy:
2×10-4×N±1digit |
| Store
time :no limit |
| Adoption
time:1s(automation) |
| Weight:300g(include
battery) |
| Measuring
distance: 50～400mm |
| Display:
5-digital LCD |
| Temp:
0～＋50℃ |
| Battery:
4×1. 5（DC） alkalinity battery |
| Dimension: 200mm(L)×60mm(W)×24.5mm(H) |
| |
|
 |
KL-005
Tachometer
| Technical
Specification: |
|
1、Measuring
range: 60～9999r/min
2、accuracy: 2×10-4×N±1digit
3、store time :no limit
4、adoption time:1s(automation)
5、weight:300g(include battery) |
6、measuring distance: 50～400mm
7、display: 4-digital LED
8、temp: 0～＋50℃
9、battery: 4×1. 5（DC） alkalinity battery
10、dimension: 78mm(L)×38mm(W)×180mm(H) |
KL-006
Tachometer
| |
Technical
Specification: |
| |
1、Measuring range: 20～50000r/min
2、accuracy: 2×10-4×N±1digit
3、store time :no limit
4、adoption time:1s(automation)
5、weight:300g(include battery)
6、measuring distance: 50～400mm
7、display: 5-digital LCD
8、temp: 0～＋50℃
9、battery: 4×1. 5（DC） alkalinity battery
10、dimension: 78mm(L)×38mm(W)×180mm(H) |
|
KL-005/006
Tachometer
|
|
|
|
|
|
|
